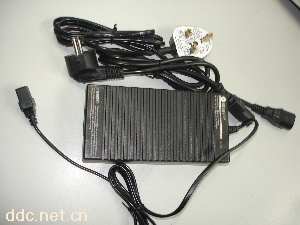

威德盛电动车充电器

当前价：100/个
供货总量：广东

我要采购 我要代理 我要维修

参数

详情

1.描述(Description)此电池充电器，输入电压为90-264Vac,输出为14.8Vdc/5.0A。此电池充电器具有高可靠性、高效率等特性。 This battery charger, which input voltage 90-264Vac and output is 14.8Vdc/5.0A.with high reliability,high efficiency, meet safety and EMC requirements. 2.输入特性(Input Feature)2.1输入电压范围(Input Voltage Range)90-264Vac2.2额定输入电压(Rated Input Voltage)100-240Vac2.3输入频率范围(Input Frequency Range)47-63Hz2.4额定频率(Rated Input Frequency)50-60Hz2.5输入电流(Input Current)1.5A Max(@100Vac, 满载Full Load)2.6工作效率(Efficiency)80% Min(@100-240Vac,满载Full Load)2.7浪涌电流(Inrush Current)30A Max@115 Vac(冷机启动Cold Start)60A Max@230 Vac(冷机启动Cold Start)
